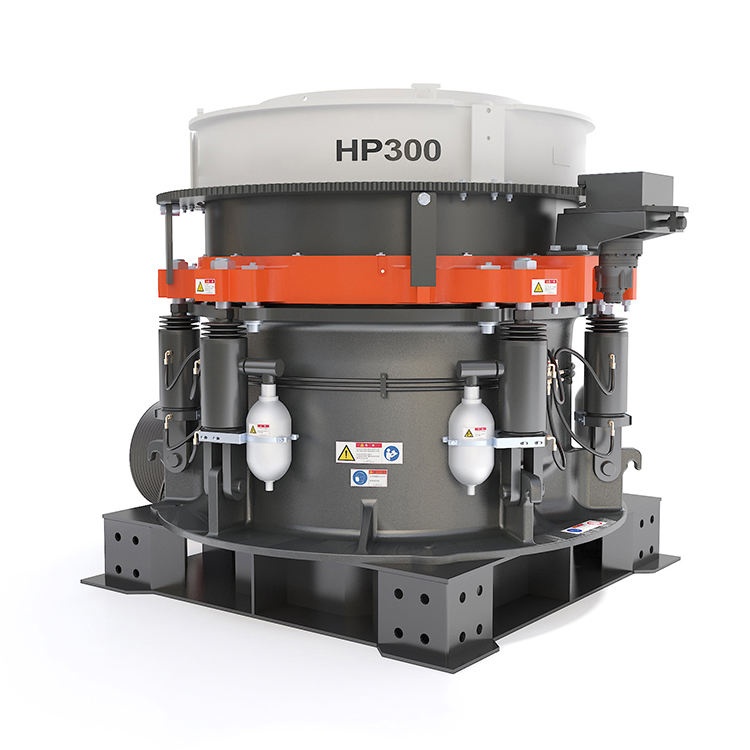

## Multi-cylinder Cone Crusher
The **Multi-cylinder Cone Crusher** is a high-performance, modern piece of equipment used for secondary or tertiary crushing. It is widely utilized in mining, smelting, construction materials, road building, and the chemical industry. Compared to traditional single-cylinder cone crushers, it utilizes **multiple hydraulic cylinders** to adjust the discharge opening and provide overload protection, resulting in higher production efficiency and superior product quality when processing high-hardness materials.
### Core Working Principle
The core of its operation lies in the **”inter-particle crushing”** (laminated crushing) principle. An electric motor drives the eccentric bushing to rotate via a transmission shaft, causing the mantle (moving cone) to perform a gyratory motion under the force of the eccentric bushing.
1. **Crushing Process:** Materials are continuously subjected to compression, bending, and shearing between the mantle and the concave (fixed cone) within the crushing chamber.
2. **Laminated Effect:** Due to the powerful driving force, the material is not just crushed as individual particles; instead, particles are squeezed against each other. This results in more rounded finished products (high cubic content).
3. **Hydraulic Control:** Multiple hydraulic cylinders distributed around the periphery provide a constant locking force. When encountering non-crushable objects (such as tramp iron), the system automatically releases pressure to protect the machine from damage.
### Key Technical Advantages
* **Greater Crushing Ratio:** By optimizing crushing frequency and eccentricity, multi-cylinder crushers achieve higher output and a lower proportion of fine powder compared to single-cylinder models.
* **Fully Hydraulic Operation:**
* **Chamber Clearing:** If the machine stops under load, the hydraulic system can easily clear the crushing chamber.
* **Adjustment:** A hydraulic motor drives the adjustment of the discharge opening, ensuring high precision and automation.
* **Superior Finished Product Shape:** The inter-particle crushing effect produces mostly cubic products, reducing the content of needle-like or flaky particles. This is ideal for high-standard sand and aggregate production.
* **High Reliability:** The use of labyrinth or hydraulic seals effectively prevents dust from entering the lubrication system, extending the service life of the bearings.
### Technical Parameter Overview (Typical Range)
| Parameter Item | Range |
|—|—|
| **Feed Size** | 30mm – 300mm (Depending on model) |
| **Throughput Capacity** | 50t/h – 1000t/h+ |
| **Discharge Opening Range** | 6mm – 50mm |
| **Installed Power** | 100kW – 600kW+ |
### Applications
* **Secondary & Tertiary Crushing:** Processing ores and rocks of various hardness.
* **High-Hardness Materials:** Such as basalt, granite, river pebbles, iron ore, gold ore, etc.
* **Premium Aggregate Lines:** Production lines for construction aggregates with strict requirements for product shape.
### Selection Advice
When selecting a multi-cylinder cone crusher, the primary focus should be on **material hardness**, **feed size**, and **target output**. While multi-cylinder models offer better stability when handling extremely hard materials compared to single-cylinder models, their structure is more complex and requires more specialized hydraulic knowledge for maintenance.
