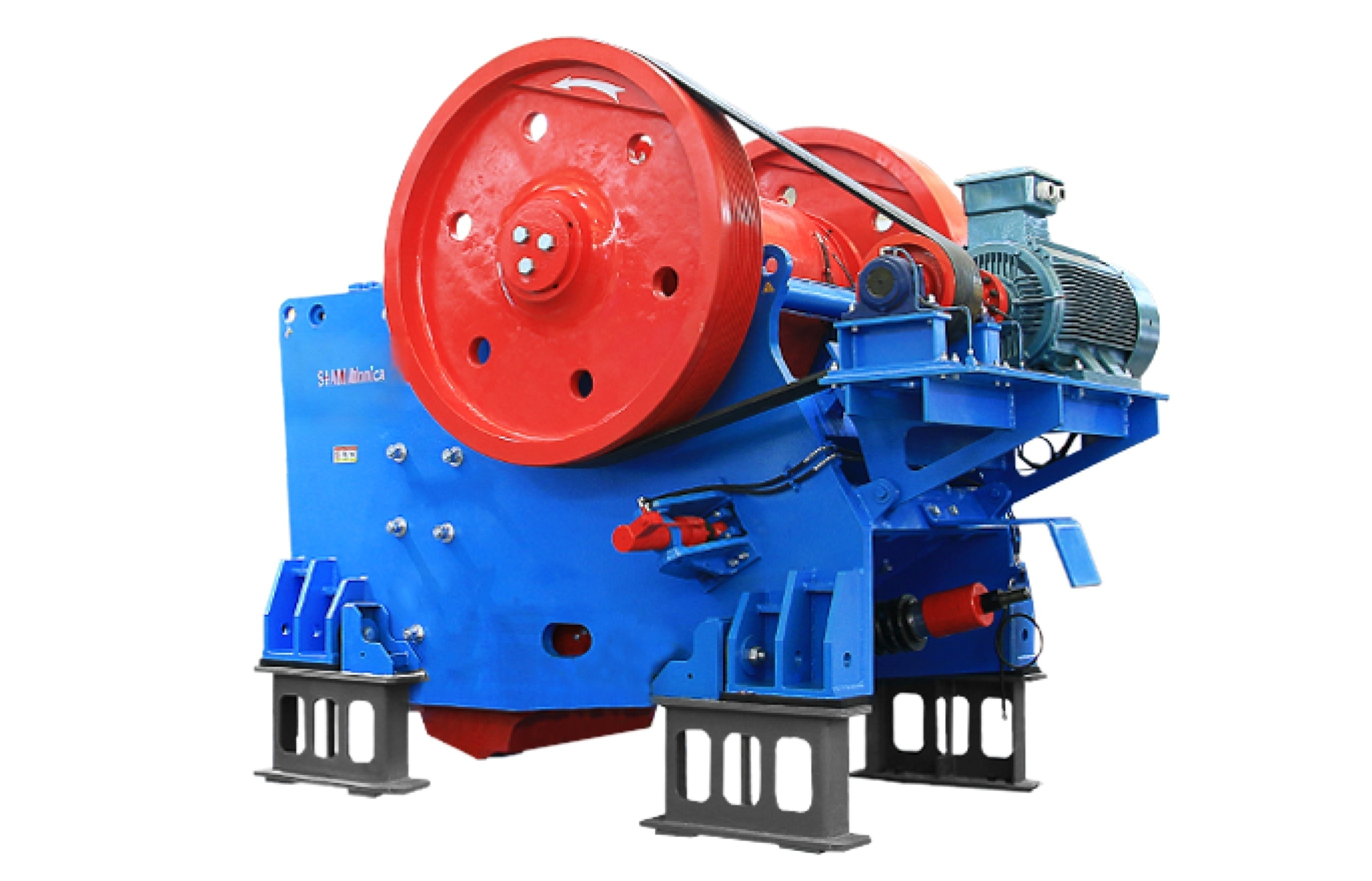

JC Series Jaw Crusher

Key Features of JC Series Jaw Crusher
1. Convenient Installation, Transport, and Robust Frame Structure
The frame is available in two types: welded and assembled.
* Welded Type: Generally used for small and medium specifications. It features large-radius transition fillets and low-stress zone welding, ensuring high impact resistance, uniform stress distribution, and a low failure rate.
* Assembled Type: Generally used for large-scale units. It utilizes advanced modular and full-unit assembly design, making it ideal for narrow or difficult-to-access locations such as underground mines, high-altitude operations, and regions with extreme low temperatures.
2. Superior Cavity Design and High Crushing Performance
The “V”-shaped symmetrical crushing cavity features a deep chamber, small nip angle, and long stroke. This design maximizes throughput while minimizing energy consumption. Additionally, the large-inclination toggle plate design increases the stroke at the bottom of the cavity, resulting in significantly higher yields.
3. Durable Heavy-Duty Moving Jaw Assembly
The assembly incorporates a forged heavy-duty eccentric shaft, premium heavy-load rolling bearings, and a moving jaw body optimized through Finite Element Method (FEM) analysis. This ensures superior impact resistance and stability. The labyrinth seal and centralized lubrication system protect the grease from contamination, making maintenance more convenient and extending operational uptime.
4. Quick and Easy Grain Size Adjustment
The JC Series is equipped with mechanical or hydraulic discharge opening (CSS) adjustment devices. The double-wedge adjustment method is simpler, safer, and faster compared to traditional shim adjustments, significantly reducing downtime.
5. Oversized Bearing Design
The adoption of “oversized bearings” provides a massive load-bearing capacity, longer service life, and enhanced operational safety and reliability.
6. Optimized Jaw Plates and Protective Guard Design
Users can select different tooth profiles for the jaw plates based on the specific material characteristics to achieve optimal crushing results. To enhance durability, a heavy-duty guard plate is installed above the moving jaw to prevent damage from material impact, effectively protecting the jaw body and internal bearings.
7. Integrated Bearing Housing for Easy Transport and Installation
The integral cast steel bearing housing ensures a perfect fit with the frame. This design avoids the unnecessary radial loads on bearings typically caused by tightening assembled housings, ensuring smoother bearing operation.
8. Integrated Motor Installation
The motor seat is integrated directly onto the crusher frame. This configuration saves installation space and reduces V-belt length. Since the frame, motor seat, and motor move synchronously, the adjustable motor seat allows for precise belt tensioning, thereby extending the service life of the V-belts.
